SB-Acoustics SB12PACR25-4 Aluminum

4" SB12PFCR25-8 Aluminium cone, midwoofer
Beschikbaarheid:: 2 op voorraad
Artikelnummer voorraad referentie: 1382381
Leveringsdatum: 1 - 2 werkdagen
Fabrikant: SB-Acoustics
€25,12 incl. BTW
Exclusief verzenden

FEATURES

  • Vented reinforced plastic chassis
  • Anodised aluminium cone
  • Low damping rubber surround
  • Large vented motor system
  • Long stroke linear suspension
  • Light weight CCAW voice coil
  • Non-conducting fibreglass coil former
  • Non-resonant long life lead wires

SPECS

  • Nominal Impedance 4 Ω
  • DC resistance, Re 3.1 Ω
  • Voice coil inductance, Le 0.25 mH
  • Effective piston area, Sd 50 cm2
  • Voice coil diameter 25.4 mm
  • Voice coil height 15 mm
  • Air gap height 5 mm
  • Linear coil travel (p-p) 10 mm
  • Magnetic flux density 1.03 T
  • Magnet weight 0.40 kg
  • Net weight 0.86 kg
  • Free air resonance, Fs 52.5 Hz
  • Sensitivity (2.83 V / 1 m) 87 dB
  • Mechanical Q-factor, Qms 5.0
  • Electrical Q-factor, Qes 0.33
  • Total Q-factor, Qts 0.31
  • Moving mass incl. air, Mms 6.1 g
  • Force factor, Bl 4.35 Tm
  • Equivalent volume, VAS 5.3 liters
  • Compliance, Cms 1.50 mm/N
  • Mechanical loss, Rms 0.4 kg/s
  • Rated power handling* 30 W

* IEC 268-5, T/S parameters measured on drive units that are broken in.


PDFAls u deze gegevens liever wilt uitprinten of voor offline gebruik, download dan onze PDF

FEATURES

  • Vented reinforced plastic chassis
  • Anodised aluminium cone
  • Low damping rubber surround
  • Large vented motor system
  • Long stroke linear suspension
  • Light weight CCAW voice coil
  • Non-conducting fibreglass coil former
  • Non-resonant long life lead wires

SPECS

  • Nominal Impedance 4 Ω
  • DC resistance, Re 3.1 Ω
  • Voice coil inductance, Le 0.25 mH
  • Effective piston area, Sd 50 cm2
  • Voice coil diameter 25.4 mm
  • Voice coil height 15 mm
  • Air gap height 5 mm
  • Linear coil travel (p-p) 10 mm
  • Magnetic flux density 1.03 T
  • Magnet weight 0.40 kg
  • Net weight 0.86 kg
  • Free air resonance, Fs 52.5 Hz
  • Sensitivity (2.83 V / 1 m) 87 dB
  • Mechanical Q-factor, Qms 5.0
  • Electrical Q-factor, Qes 0.33
  • Total Q-factor, Qts 0.31
  • Moving mass incl. air, Mms 6.1 g
  • Force factor, Bl 4.35 Tm
  • Equivalent volume, VAS 5.3 liters
  • Compliance, Cms 1.50 mm/N
  • Mechanical loss, Rms 0.4 kg/s
  • Rated power handling* 30 W

* IEC 268-5, T/S parameters measured on drive units that are broken in.


PDFAls u deze gegevens liever wilt uitprinten of voor offline gebruik, download dan onze PDF

Schrijf uw eigen beoordeling
  • Alleen geregistreerde gebruikers kunnen een beoordeling schrijven
*
*
Slecht
Uitstekend
Klanten die dit kochten, kochten ook.

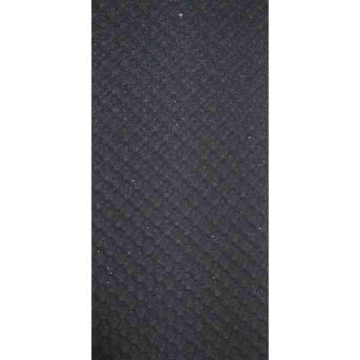

Pritex FF-30 (50x100x4,2cm)

Dempingmateriaal noppenschuim
€23,51 incl. BTW
Exclusief verzenden

HP-70

HP-70
€3,35 incl. BTW
Exclusief verzenden

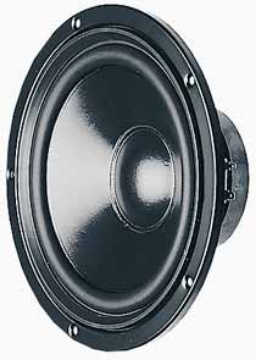

Visaton W 200S-4
