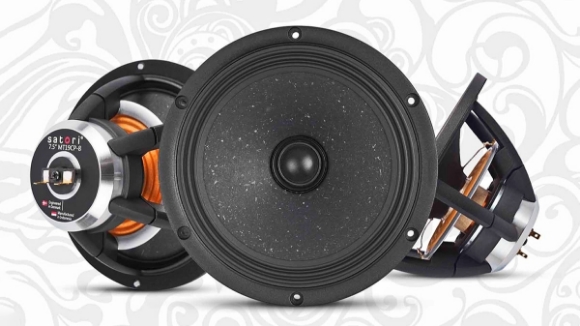

SATORI MT19CP

SATORI MT19CP, 7½” coaxial
Manufacturer: SB-Acoustics
SKU: 1382487
Delivery date: Direct leverbaar
Product tags
€287.74 incl tax
excluding shipping

SB Acoustics MT19CP-8 Satori Coaxial Driver Expands High Quality Options for Speaker Designers

The latest product in the growing SB Acoustics Satori high quality transducer range is the 7.5" Satori MT19CP-8 coaxial driver featuring an Egyptian papyrus fiber cone developed and perfected in its own cone/spider facility in Indonesia, matched with a dedicated 26mm high performance soft dome tweeter. A well-engineered driver for refined home audio designs that leverages on the extensive R&D that already characterizes the Satori speaker driver range.



FEATURES

  • Vented cast aluminium chassis
  • Proprietary cone material with EGYPTIAN PAPYRUS made in house
  • Powerful low distortion neodymium motor system with extended copper sleeve
  • Low profile surround for minimum high frequency diffraction
  • Light weight CCAW voice coil on fibre glass former
  • Long life silver lead wires
  • Soft dome tweeter with neodymium motor, copper cap and CCAW voice coil

SPECS

SPECS WOOFER:

    • Nominal Impedance 8 Ω
    • DC resistance, Re 6.5 Ω
    • Voice coil inductance, Le 0.12 mH
    • Effective piston area, Sd 152 cm2
    • Voice coil diameter 38.6 mm
    • Voice coil height 13.2 mm
    • Air gap height 6 mm
    • Linear coil travel (p-p) 7.2 mm
    • Magnetic flux density 1.1 T
    • Magnet weight 0.16 kg
    • Net weight 1.56 kg
    • Free air resonance, Fs 43 Hz
    • Sensitivity (2.83V/1m) 90 dB
    • Mechanical Q-factor, Qms 6.54
    • Electrical Q-factor, Qes 0.33
    • Total Q-factor, Qts 0.31
    • Moving mass incl. air,Mms 12.1 g
    • Force factor, Bl 8.05 Tm
    • Equivalent volume, Vas 37.1 liters
    • Compliance, Cms 1.13 mm/N
    • Mechanical loss, Rms 0.5 kg/s
    • Rated power handling* 60 W

* IEC 268-5, T/S parameters measured on drive units that are broken in



SPECS TWEETER:

  • Nominal Impedance 4 Ω
  • DC resistance, Re 3.7 Ω
  • Voice coil diameter 25.4 mm
  • Voice coil height 1.3 mm
  • Air gap height 2.5 mm
  • Free air resonance, Fs 1200 Hz
  • Sensitivity (2.83V/1m) 90 dB
  • Rated power handling* 60 W
  • Magnetic flux density 1.2 T
  • Magnet weight 0.016 kg
  • Net weight 0.083 kg

Je kunt alle uitgebreide technische gegevens vinden op het datablad, download dan onze PDF
Product Informatie PDF


SB Acoustics MT19CP-8 Satori Coaxial Driver Expands High Quality Options for Speaker Designers

The latest product in the growing SB Acoustics Satori high quality transducer range is the 7.5" Satori MT19CP-8 coaxial driver featuring an Egyptian papyrus fiber cone developed and perfected in its own cone/spider facility in Indonesia, matched with a dedicated 26mm high performance soft dome tweeter. A well-engineered driver for refined home audio designs that leverages on the extensive R&D that already characterizes the Satori speaker driver range.



FEATURES

  • Vented cast aluminium chassis
  • Proprietary cone material with EGYPTIAN PAPYRUS made in house
  • Powerful low distortion neodymium motor system with extended copper sleeve
  • Low profile surround for minimum high frequency diffraction
  • Light weight CCAW voice coil on fibre glass former
  • Long life silver lead wires
  • Soft dome tweeter with neodymium motor, copper cap and CCAW voice coil

SPECS

SPECS WOOFER:

    • Nominal Impedance 8 Ω
    • DC resistance, Re 6.5 Ω
    • Voice coil inductance, Le 0.12 mH
    • Effective piston area, Sd 152 cm2
    • Voice coil diameter 38.6 mm
    • Voice coil height 13.2 mm
    • Air gap height 6 mm
    • Linear coil travel (p-p) 7.2 mm
    • Magnetic flux density 1.1 T
    • Magnet weight 0.16 kg
    • Net weight 1.56 kg
    • Free air resonance, Fs 43 Hz
    • Sensitivity (2.83V/1m) 90 dB
    • Mechanical Q-factor, Qms 6.54
    • Electrical Q-factor, Qes 0.33
    • Total Q-factor, Qts 0.31
    • Moving mass incl. air,Mms 12.1 g
    • Force factor, Bl 8.05 Tm
    • Equivalent volume, Vas 37.1 liters
    • Compliance, Cms 1.13 mm/N
    • Mechanical loss, Rms 0.5 kg/s
    • Rated power handling* 60 W

* IEC 268-5, T/S parameters measured on drive units that are broken in



SPECS TWEETER:

  • Nominal Impedance 4 Ω
  • DC resistance, Re 3.7 Ω
  • Voice coil diameter 25.4 mm
  • Voice coil height 1.3 mm
  • Air gap height 2.5 mm
  • Free air resonance, Fs 1200 Hz
  • Sensitivity (2.83V/1m) 90 dB
  • Rated power handling* 60 W
  • Magnetic flux density 1.2 T
  • Magnet weight 0.016 kg
  • Net weight 0.083 kg

Je kunt alle uitgebreide technische gegevens vinden op het datablad, download dan onze PDF
Product Informatie PDF
