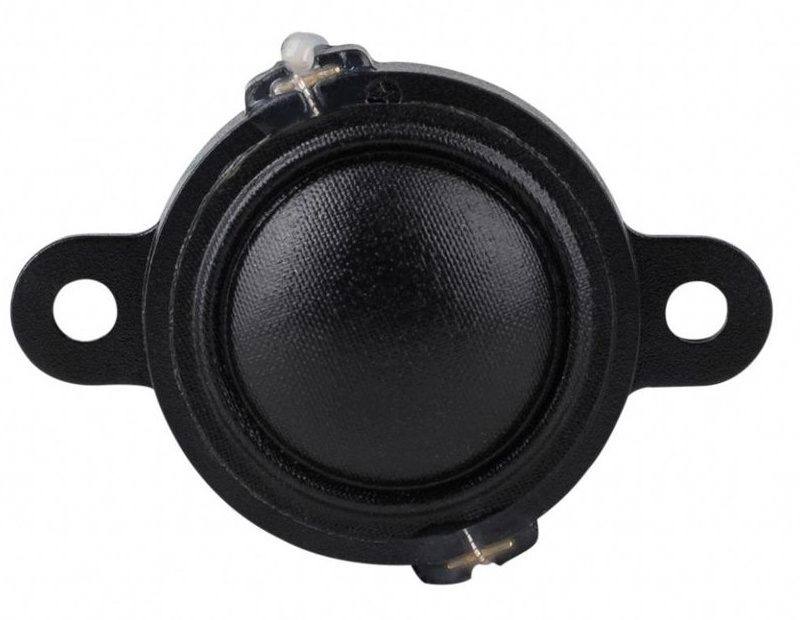

This OC family tweeter features a 16 mm 4 ohm voice coil, a damped fabric dome for smooth frequency response performance, and ferrofluid in the gap of the neodymium magnet motor, providing enhanced cooling of the voice coil. The tweeters butterfly comes with 2 mounting holes and with 2 pin terminals. The product is designed to fit snugly into small applications, while providing excellent dynamic sound quality.

FEATURES

• Ferrofluid provides cooling for the voice coil and improved damping
• Damped fabric dome and surround for smooth, natural response
• Powerful neodymium motor minimizes size and weight
• Great for tight spaces and car audio applications

SPECS

• OC16SC04-04
• Soft Dome
• OC Series
• Dome Diameter5/8"
• Belastbaarheid (RMS)100 Watts
• Impedantie (Z)4 ohms
• Gevoeligheid 83.7 dB 1W/1m
• Frequentierespons 2500 to 25,000 Hz
• Fs = 2153 Hz
• Re = 3.93 ohms
• Voice Coil Inductance (Le)0.02 mH
• Mechanische Q (Qms) 2.94
• Electromagnetic Q (Qes) 4.19
• Totale Q (Qts) 1.73

Als u het complete datablad wilt inzien, download dan onze PDF
