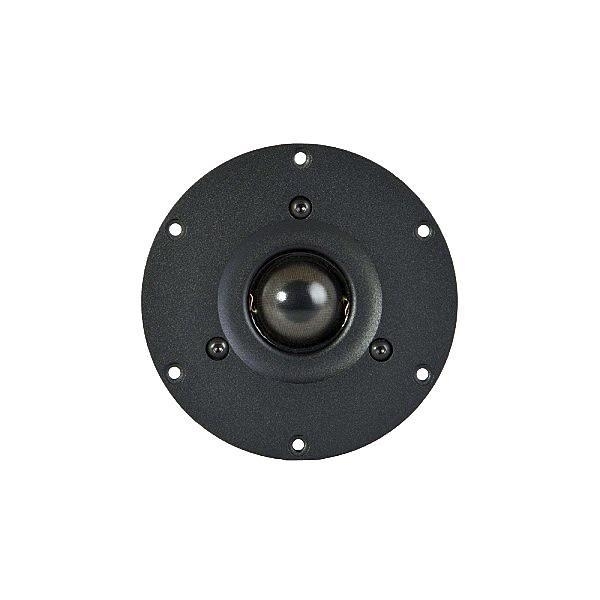

Morel ST-1048 104 mm, silver (matched)

Supreme 28 mm Soft Dome Tweeter, 8 Ω, Silver
Beschikbaarheid:: Niet op voorraad: indien weer op voorraad, zal deze in een keer uit voorraad worden verzonden
Artikelnummer voorraad referentie: 1381511
Leveringsdatum: 1 - 2 werkdagen
Fabrikant: Morel
€244,96 incl. BTW
Exclusief verzenden

The Morel ST 1048 is a high-end 28mm soft dome tweeter from the Supreme range. This innovative unit features a short voice coil operating in a long magnetic gap - linear operation is maintained throughout the bandwidth even at high output levels as the coil assembly never strays from the area of peak magnetic flux (this mode of operation is often referred to as 'underhung'). The voice coil is wound with Hexatech Aluminium wire (Hexagonal section, zero air gap) and is cooled by ferrofluid. The dome assembly is hand coated with Acuflex damping compound and is field replaceable. The critically tuned and damped rear chamber yields a low resonant frequency of just 680 Hz.

Power handling is excellent at 220w nominal, 1000w peak.

As can be seen from the datasheet, the ST 1048 has an incredibly smooth response; the critical 3kHz-17kHz band is held within 2dB limits.

FEATURES

  • 104 mm IDR™ Improved Dispersion Recess Faceplate
  • Large Hexatech™ Aluminium voice coil
  • 28 mm soft dome treated with Acuflex
  • Neodymium flat pancake magnet
  • Critically tuned rear chamber
  • Replaceable dome assembly
  • High power handling

SPECS:

Resonant frequency (fs)680HzNominal impedance (Zn)8 Ω
Effective diaphragm diameter28mmDC resistance (Re)5.2 Ω
Ferrofluid ? Y/NYesRMS power handling220W
Recommended crossover2.5khzFaceplate diameter104 mm
Sensitivity (2.83V/1m)91.5 dBCutout hole diameter75 mm


Je kunt alle uitgebreide technische gegevens vinden op het datablad, download dan onze PDF
Product Informatie PDF


The Morel ST 1048 is a high-end 28mm soft dome tweeter from the Supreme range. This innovative unit features a short voice coil operating in a long magnetic gap - linear operation is maintained throughout the bandwidth even at high output levels as the coil assembly never strays from the area of peak magnetic flux (this mode of operation is often referred to as 'underhung'). The voice coil is wound with Hexatech Aluminium wire (Hexagonal section, zero air gap) and is cooled by ferrofluid. The dome assembly is hand coated with Acuflex damping compound and is field replaceable. The critically tuned and damped rear chamber yields a low resonant frequency of just 680 Hz.

Power handling is excellent at 220w nominal, 1000w peak.

As can be seen from the datasheet, the ST 1048 has an incredibly smooth response; the critical 3kHz-17kHz band is held within 2dB limits.

FEATURES

  • 104 mm IDR™ Improved Dispersion Recess Faceplate
  • Large Hexatech™ Aluminium voice coil
  • 28 mm soft dome treated with Acuflex
  • Neodymium flat pancake magnet
  • Critically tuned rear chamber
  • Replaceable dome assembly
  • High power handling

SPECS:

Resonant frequency (fs)680HzNominal impedance (Zn)8 Ω
Effective diaphragm diameter28mmDC resistance (Re)5.2 Ω
Ferrofluid ? Y/NYesRMS power handling220W
Recommended crossover2.5khzFaceplate diameter104 mm
Sensitivity (2.83V/1m)91.5 dBCutout hole diameter75 mm


Je kunt alle uitgebreide technische gegevens vinden op het datablad, download dan onze PDF
Product Informatie PDF
