Visaton G50FFL

G50FFL
Beschikbaarheid:: Niet op voorraad: indien weer op voorraad, zal deze in een keer uit voorraad worden verzonden
Artikelnummer voorraad referentie: 5921176
Fabrikant: Visaton
€122,39 incl. BTW
Exclusief verzenden

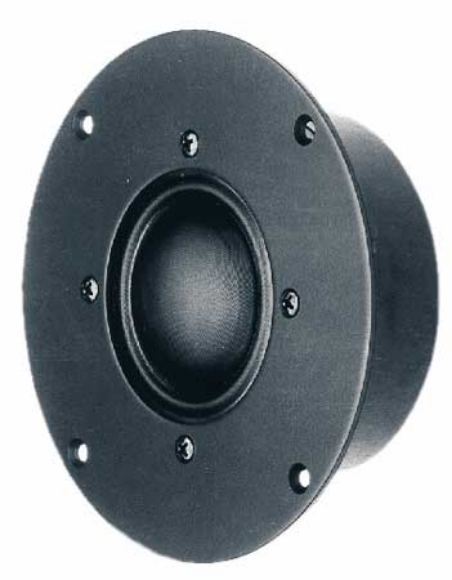

50 mm (2") High-End fabric dome driver for the midrange band between 800 and 7000 Hz. Due to the optimised dome shape with damping coating in conjunction with the highly damped surround, linear frequency response and no partial oscillations. Due to the powerful magnetic drive and the ferrofluid-cooled voice-coil high efficiency and high power handling can be guaranteed

Technical Data:
Nominal power 12 dB/Okt; 800 Hz

120 W

Peak power 12 dB/Okt; 800 Hz180 W
Nominal impedance Z8 Ohm
Frequency response400–15000 Hz
Mean sound pressure level90 dB (1 W/1 m)
Opening angle (-6 dB)

138°/4000 Hz

Resonance frequency430 Hz
Magnetic induction1,4 T
Magnetic flux880 µWb
Height of front poleplate3,5 mm
Voice coil diameter50 mm
Height of winding3 mm
Cutout diameterØ 106 mm
Net weight1,26 kg
D.C. resistance Rdc6,7 Ohm
Mechanical Q factor Qms1,19
Electrical Q factor Qes0,7
Total Q factor Qts0,44
Equivalent volume Vas0,05 l
Effective piston area20 cm²
Dynamically moved mass Mms1,2 g
Inductance of the voice coil0,16 mH

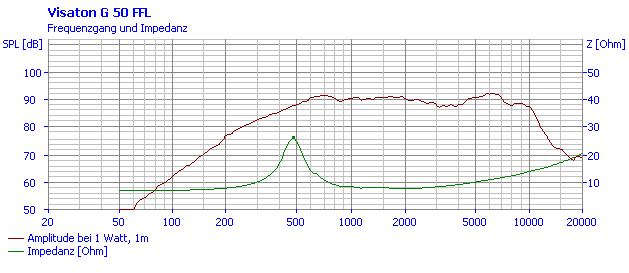

Frequentieverloop

Frequentieverloop

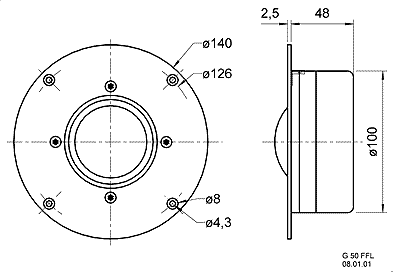

Afmetingen

Afmetingen

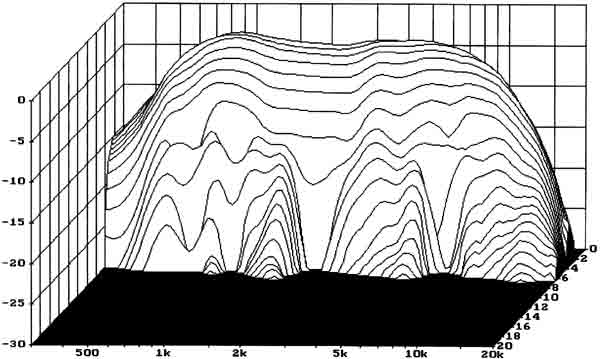

Waterfall diagram

Waterfall

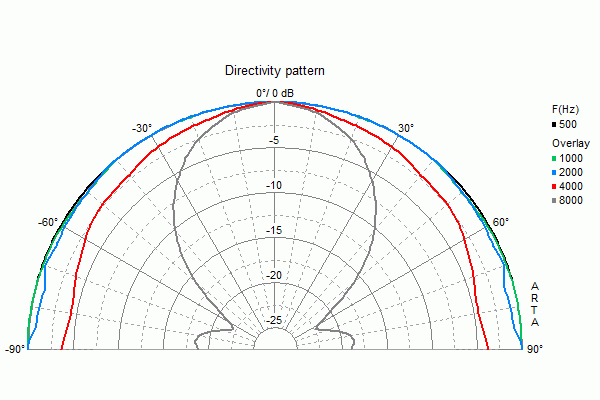

Directivity Pattern

Directivity

50 mm (2") High-End fabric dome driver for the midrange band between 800 and 7000 Hz. Due to the optimised dome shape with damping coating in conjunction with the highly damped surround, linear frequency response and no partial oscillations. Due to the powerful magnetic drive and the ferrofluid-cooled voice-coil high efficiency and high power handling can be guaranteed

Technical Data:
Nominal power 12 dB/Okt; 800 Hz

120 W

Peak power 12 dB/Okt; 800 Hz180 W
Nominal impedance Z8 Ohm
Frequency response400–15000 Hz
Mean sound pressure level90 dB (1 W/1 m)
Opening angle (-6 dB)

138°/4000 Hz

Resonance frequency430 Hz
Magnetic induction1,4 T
Magnetic flux880 µWb
Height of front poleplate3,5 mm
Voice coil diameter50 mm
Height of winding3 mm
Cutout diameterØ 106 mm
Net weight1,26 kg
D.C. resistance Rdc6,7 Ohm
Mechanical Q factor Qms1,19
Electrical Q factor Qes0,7
Total Q factor Qts0,44
Equivalent volume Vas0,05 l
Effective piston area20 cm²
Dynamically moved mass Mms1,2 g
Inductance of the voice coil0,16 mH



Frequentieverloop

Frequentieverloop

Afmetingen

Afmetingen

Waterfall diagram

Waterfall

Directivity Pattern

Directivity
