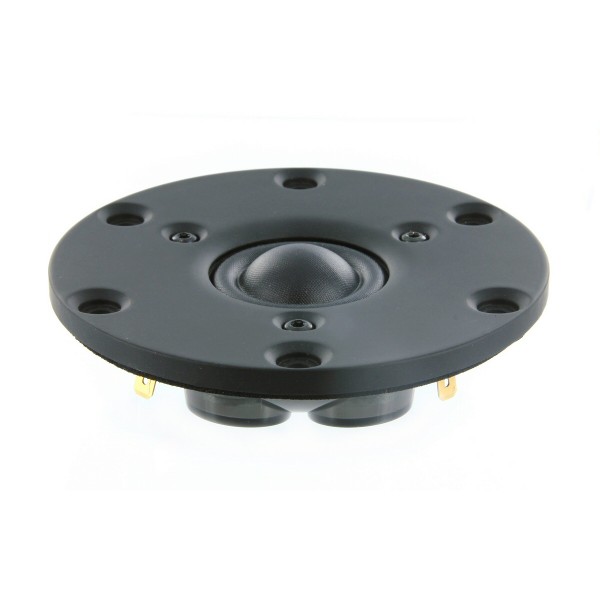

1'' Illuminator Dome Tweeter - AirCirc Black - 4 ohm
Fabrikant: Scan Speak Illuminator
Beschikbaarheid:: 1 op voorraad
Artikelnummer voorraad referentie: 7366000
€173,51 incl. BTW
Exclusief verzenden

The Illuminator tweeters continue on with the heritage of the renowned Revelator D29. The large-roll surround and textile dome diaphragm provide a flat frequency response to above 30KHz with outstanding off-axis dispersion. The face plates and back chambers are die cast in aluminum for a beautiful look with maximum mechanical stability. The back chamber is designed with a contoured shape that functions as a heat sink in high power applications. The magnet is positioned away from the heat source for minimal thermal compression. The Illuminator tweeters are optimized to offer small package sizes that can fit into tight spaces such as compact cabinets and automotive trim pieces.

Driver Highlights: 1" soft dome, AirCirc Magnet System, aluminum faceplate

Als u deze gegevens liever wilt uitprinten of voor offline gebruik, download dan onze PDF
Product Informatie PDF


Specs

Electrical Data



  • Nominal Impedance
 Zn 4 ohm
  • Minimum Impedance
 Zmin 9 ohm
  • Maximum Impedance
 Zo 18.6 ohm
  • DC Resistance
 Re 3 ohm
  • Voice Coil Inductance
 Le 0.03 mH

TS Parameters

  • Resonance Frequency
 Fs 500 Hz
  • Force Factor
 Bl 2.3 Tm
  • Moving Mass
 Mms 0.35 g
  • Suspension Compliance
 Cms 0.29 mm/N
  • Effective Piston Area
 Sd 8.5 cm^2
  • Sensitivity
 2.83V/1m 91 dB

Power Handling

  • 100h RMS noise test
 IEC 90 W

Voice Coil and Magnet Parameters

  • Voice Coil Diameter
 26 mm
  • Voice Coil Height
 2.1 mm
  • Voice Coil Layers
 2
  • Height of the Gap
 2.5 mm
  • Linear Excursion +/-
 0.1 mm
  • Max mech. excursion +/-
 1.5 mm
  • Weight of Magnet
 0.3 kg

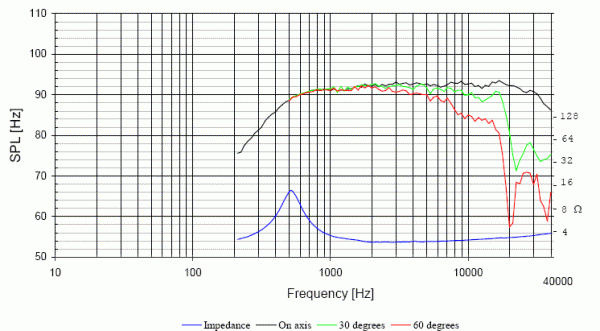

Frequency
Frequency

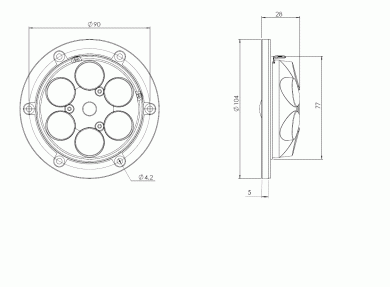

Mechanical Dimensions

Mechanical Dimensions



Drawing Dimensions

  • Outside Diameter
 OD 104 mm
  • Flange Thickness
 FT 5 mm
  • Cutout Diameter
 CD 77 mm
  • Interior Depth
 ID 23 mm
  • Hole Diameter
 HD 5 mm
  • Screw Circle Diameter
 SD 110 mm

The Illuminator tweeters continue on with the heritage of the renowned Revelator D29. The large-roll surround and textile dome diaphragm provide a flat frequency response to above 30KHz with outstanding off-axis dispersion. The face plates and back chambers are die cast in aluminum for a beautiful look with maximum mechanical stability. The back chamber is designed with a contoured shape that functions as a heat sink in high power applications. The magnet is positioned away from the heat source for minimal thermal compression. The Illuminator tweeters are optimized to offer small package sizes that can fit into tight spaces such as compact cabinets and automotive trim pieces.

Driver Highlights: 1" soft dome, AirCirc Magnet System, aluminum faceplate

Als u deze gegevens liever wilt uitprinten of voor offline gebruik, download dan onze PDF
Product Informatie PDF


Specs

Electrical Data



  • Nominal Impedance
 Zn 4 ohm
  • Minimum Impedance
 Zmin 9 ohm
  • Maximum Impedance
 Zo 18.6 ohm
  • DC Resistance
 Re 3 ohm
  • Voice Coil Inductance
 Le 0.03 mH

TS Parameters

  • Resonance Frequency
 Fs 500 Hz
  • Force Factor
 Bl 2.3 Tm
  • Moving Mass
 Mms 0.35 g
  • Suspension Compliance
 Cms 0.29 mm/N
  • Effective Piston Area
 Sd 8.5 cm^2
  • Sensitivity
 2.83V/1m 91 dB

Power Handling

  • 100h RMS noise test
 IEC 90 W

Voice Coil and Magnet Parameters

  • Voice Coil Diameter
 26 mm
  • Voice Coil Height
 2.1 mm
  • Voice Coil Layers
 2
  • Height of the Gap
 2.5 mm
  • Linear Excursion +/-
 0.1 mm
  • Max mech. excursion +/-
 1.5 mm
  • Weight of Magnet
 0.3 kg

Frequency
Frequency



Mechanical Dimensions

Mechanical Dimensions



Drawing Dimensions

  • Outside Diameter
 OD 104 mm
  • Flange Thickness
 FT 5 mm
  • Cutout Diameter
 CD 77 mm
  • Interior Depth
 ID 23 mm
  • Hole Diameter
 HD 5 mm
  • Screw Circle Diameter
 SD 110 mm
