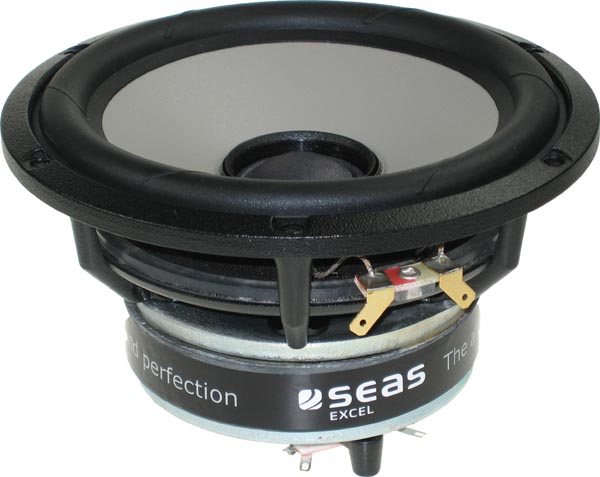

Seas Excel C16N001/F (E0051-04/06) 16 cm coaxiale unit

SEAS designed and manufactured its first coaxial drivers more than 20 years ago.
Early on, R&D engineer Bjørn Børja recognized the unique possibilities created by the new neodymium magnet technologies; allowing us to design a high performance tweeter in a very compact package.  SEAS has continuously refined coaxial driver technology over the years, and today remains the only loudspeaker driver manufacturer to make this unique technology available to the OEM and hobbyist markets.

Never standing still, the R&D lab recently decided to see what could be accomplished by applying our state of the art Excel technology to a coaxial drive unit. The answer can be found in our new Excel C16 N001/F , and the results are amazing.

Precision cast, machined and surface treated magnesium cone acts as a piston through the audible frequency band without any sign of midrange resonances.
A unique radial reinforced rubber surround reduces resonances and prevents surround break up at large excursions.
Heavy copper rings mounted above and below the T-shaped pole piece reduce non linear and modulation distortion and increase overload margin.
The coaxially arranged precoated fabric dome high frequency unit has a low resonance frequency, and integrates with the cone driver to form a point source.
The extremely stiff and stable injection moulded metal basket keeps the critical components in perfect alignment.
Large windows in the basket both above and below the spider reduce sound reflection, air flow noise and cavity resonances to a minimum.

Als u deze gegevens liever wilt uitprinten of voor offline gebruik, download dan onze PDF

Specs

Electrical Data

TS Parameters

Power Handling

Voice Coil and Magnet Parameters

Misc

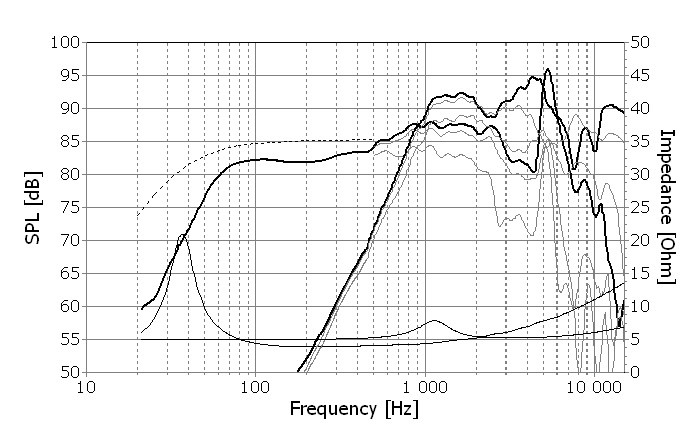

Frequency

Mechanical Dimensions
