Dit product is helaas niet meer beschikbaar

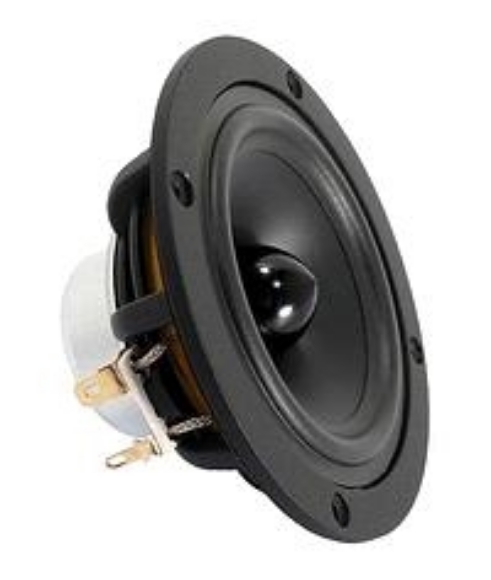

Visaton B80

8 cm (3.3") high-end full-range loudspeaker
Beschikbaarheid:: Niet op voorraad: indien weer op voorraad, zal deze in een keer uit voorraad worden verzonden
Artikelnummer voorraad referentie: 5921261
Fabrikant: Visaton
€73,40 incl. BTW
Exclusief verzenden

8 cm (3,3") High-end full-range loudspeaker with excellent balanced response characteristics. Due to perfect accordance of the coated paper Cone, the rear ventilated damper and the Phase plug phase plug, as well as the strong and lightweight neodymium Magnet, an extremely well-balanced Frequency response a with very low harmonic distortion and lowest possible mechanical losses comes into being. The B 80 8 OHM is ideal for small high-end shelf speakers or as a mid-high-range unit in high-end multi-way speakers.

Technical Data:
Rated power30 W
Maximum power50 W
Nominal impedance Z8 Ohm
Frequency response80–20000 Hz
(fu: Lower cut-off frequency depending on cabinet).
Mean sound pressure level85 dB (1 W/1 m)
Opening angle (-6 dB)119°/4000 Hz
Excursion limit+/-2,2 mm
Resonance frequency fs110 Hz
Magnetic induction1,17 T
Magnetic flux290 µWb
Height of front pole-plate3 mm
Voice coil diameter25 mm
Height of winding7,5 mm
Cutout diameter89 mm
Net weight0,32 kg
D.C. resistance Rdc6,6 Ohm
Mechanical Q factor Qms6,53
Electrical Q factor Qes0,69
Total Q factor Qts0,63
Equivalent volume Vas1,8 l
Effective piston area Sd38,5 cm²
Dynamically moved mass Mms2,8 g
Force factor Bxl4,15 Tm

Kastsuggesties

Volume/Principlefc/QTC
70 liter closed62 Hz / 1,2
100 liter closed57 Hz / 1,0

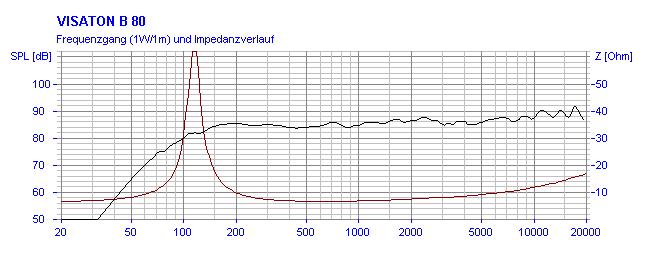

Frequentieverloop

Frequentieverloop

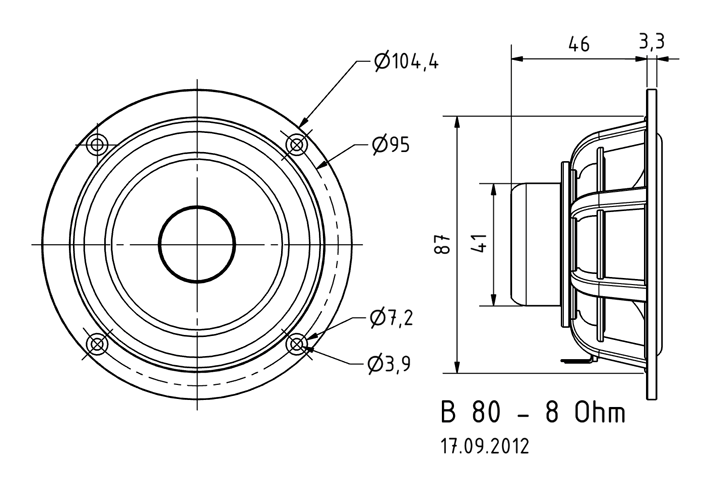

Afmetingen

B80

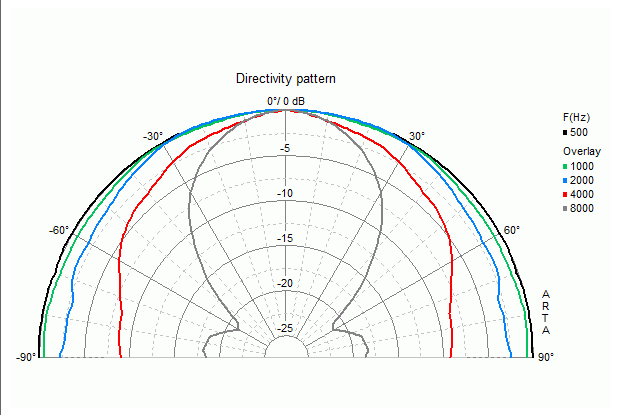

Directivity diagram

Waterfall

8 cm (3,3") High-end full-range loudspeaker with excellent balanced response characteristics. Due to perfect accordance of the coated paper Cone, the rear ventilated damper and the Phase plug phase plug, as well as the strong and lightweight neodymium Magnet, an extremely well-balanced Frequency response a with very low harmonic distortion and lowest possible mechanical losses comes into being. The B 80 8 OHM is ideal for small high-end shelf speakers or as a mid-high-range unit in high-end multi-way speakers.

Technical Data:
Rated power30 W
Maximum power50 W
Nominal impedance Z8 Ohm
Frequency response80–20000 Hz
(fu: Lower cut-off frequency depending on cabinet).
Mean sound pressure level85 dB (1 W/1 m)
Opening angle (-6 dB)119°/4000 Hz
Excursion limit+/-2,2 mm
Resonance frequency fs110 Hz
Magnetic induction1,17 T
Magnetic flux290 µWb
Height of front pole-plate3 mm
Voice coil diameter25 mm
Height of winding7,5 mm
Cutout diameter89 mm
Net weight0,32 kg
D.C. resistance Rdc6,6 Ohm
Mechanical Q factor Qms6,53
Electrical Q factor Qes0,69
Total Q factor Qts0,63
Equivalent volume Vas1,8 l
Effective piston area Sd38,5 cm²
Dynamically moved mass Mms2,8 g
Force factor Bxl4,15 Tm

Kastsuggesties

Volume/Principlefc/QTC
70 liter closed62 Hz / 1,2
100 liter closed57 Hz / 1,0

Frequentieverloop

Frequentieverloop

Afmetingen

B80

Directivity diagram

Waterfall
