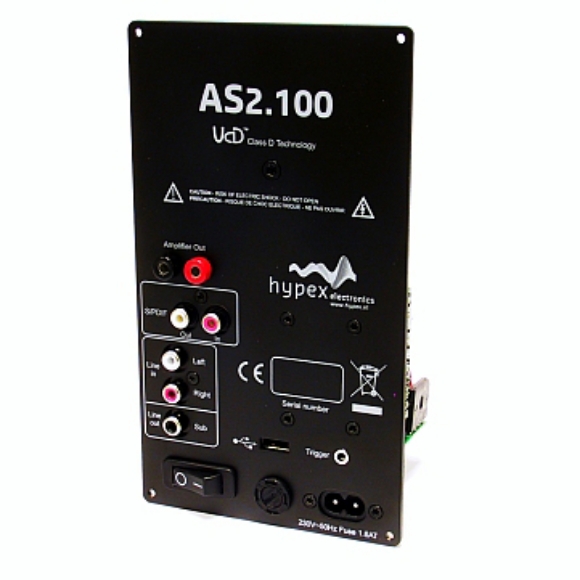

Hypex AS2.100 Analoog, no longer available

The AS2.100 is a plate amp for use in powered speaker systems. Being an active speaker controller, the AS2.100 forms the basis of, for instance, a powerful active two-way monitor. In stereo mode one AS2.100 will power an active master / passive slave pair. The AS2.100 Digital is a AS2.100 including the optional digital add-on board.

Specifications

GENERAL FEATURES:

• Fully controlled by PC software (included)
• Cross-over settings fully customisable (real-time)
• UcD100OEM (2x) powered
• Stereo analogue input
• S/PDIF input and output
• Sampling rates up to 192kHz
• USB Audio
• Infrared remote control (optional)
• Automatic input scanning
• compact design
• Fully user customised filtering
• Button panel controlled
• Remote controlled
• Filtered sub out
• Link connection master / slave (only with two modules)
• Low signal to noice (-100dB)

APPLICATIONS:

• When one module is used:
• Stereo passive filtered system
• Bridged mode for single subwoofer (max 140Watt @ 4 Ohms)
• Mono/mid 2-way setup (tweeter + sub)

When two modules are used:

• 2-way active filtered stereo system
• 2 channel system, both modules in bridge mode for more power
• 3-way active filtered in combination with an active subwoofer (filtered sub out on AS2.100)

All setups are possible with analogue and the digital audio inputs SPDIF and USB.


TECHNICAL DATA:

• Supply voltage: 230Volt AC/50Hz +/-10%
• Output power LS1: 100W @ 4Ohms
• Output power LS2: 100W @ 4Ohms

MECHANICAL DATA:

• Dimentions: 115mm x 200mm x 60mm (W x H x D)
• Weight: 1.6Kg
