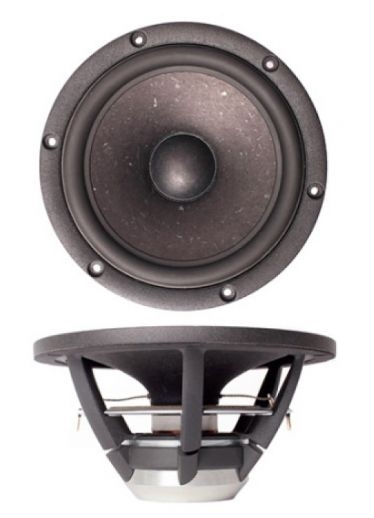

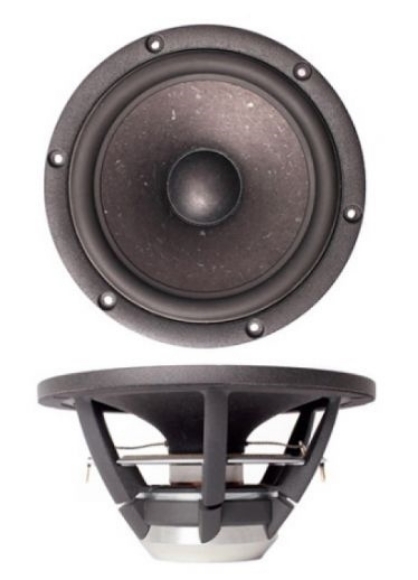

SB-Acoustics Satori MW16PNW-8 / Paper

FEATURES

• Vented aerodynamic cast aluminium chassis for optimum strength and low compression
• Proprietary cone material with EGYPTIAN PAPYRUS fibres made in-house
• Soft low damping rubber surround for optimum transient response
• Advanced BIMAX spider for improved linearity
• Powerful optimized low distortion neodymium motor system
• Non-conducting fibre glass voice coil former for minimum damping
• Extended copper sleeve on pole piece for low inductance and reduced distortion
• CCAW voice coil for reduced moving mass
• Long life silver lead wires attached 180° apart for improved stability
• Vented pole piece for reduced compression
• High piston to chassis diameter ratio
• Gasket and bolt hole protrusions for reduced coupling to speaker cabinet

SPECS

• Nominal Impedance 8 Ω
• DC resistance, Re 6.2 Ω
• Voice coil inductance, Le 0.2 mH
• Effective piston area, Sd 119 cm²
• Voice coil diameter 36 mm
• Voice coil height 17 mm
• Air gap height 5 mm
• Linear coil travel (p-p) 12 mm
• Magnetic flux density 1.17 T
• Magnet weight 0.13 kg
• Net weight 1.01 kg
• Free air resonance, Fs 29 Hz
• Sensitivity (2.83V/1m) 88 dB
• Mechanical Q-factor, Qms 4.72
• Electrical Q-factor, Qes 0.34
• Total Q-factor, Qts 0.32
• Moving mass incl. air,Mms 12.1 g
• Force factor, Bl 6.3 Tm
• Equivalent volume, Vas 49.9 liters
• Compliance, Cms 2.53 mm/N
• Mechanical loss, Rms 0.5 kg/s
• Rated power handling* 60 W

* IEC 268-5, T/S parameters measured on drive units that are broken in.
